Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: XKGS
  • Model Number: xk-318
  • Color: Brown
  • Shape: Columnar
  • Size: 4.5-5.5 mm
  • Length: 5-15 mm
  • Other name: Ferric oxide desulfurizer
  • Hardness: 45 % min
  • Bulk density: 0.72-0.80 kg/L
  • Sulfur capacity: 40 % min
  • Application: Gas/biogas/flue gas desulfurizer
  • Feature: H2S removal

Packaging & Delivery

Packaging Details: each 40kg into plastic woven bag with PE inner
Delivery Detail: 7-15 days after confirm the order

Specifications

1.used for gas desulfurization
2.directly manufacturer
3.the size can be customized

GONGYI CITY XIANKE WATER SUPPLY MATERIAL CO. LTD

We are the manufacturer of chemical auxiliary agent, activated carbon and filter materials in China. First founded in 1982 as Activated Carbon Cooperation of Gongyi. We provide products that met ISO9001:2008 and services of superior quality and value that improve the global environment and the lives of common people.



Web: www.activatedcarbonxk.com        Skype:  purifywater-xk

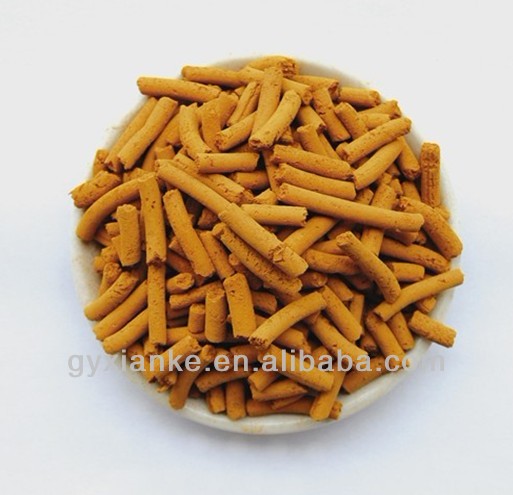

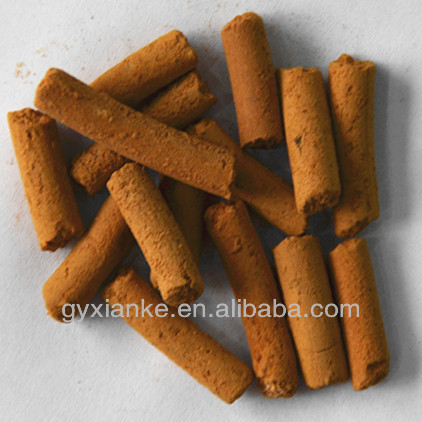

                                            Iron Oxide Desulfurizer



Appearance: Brown orange strip
Raw Material: Iron, manganese salt and other oxide

Specification:

Model

TC-101

TC-102

TC-103

appearance

claybank columnars

claybank columnars

claybank columnars

Size(mm)

4.5-5.5

4.5-5.5

4.5-5.5

Length(mm)

5-15

5-15

5-15

intensity

≥45

≥42

≥35

Bulk density(kg/L)

0.72-0.80

0.75-0.80

0.75-0.85

sulfur capacity

≥40%

≥35%

≥30%

Desulfurization

precision ppm

≤0.1

≤0.5

≤1.0



Advantages of Iron Oxide Desulfurizer:
1. H2S removal through dry method in room temperature, renewable material
2. Quick reaction: Space velocity: 1000~3000h-1, penetration space velocity: 6000h-1, twice to four-time of normal iron oxide
3. Large sulfur degree, high purification degree, reaching 25% in the condition of space velocity 1000h-1, normal pressure, water saturation, import H2S 1%, export H2S≤5×10-8 particle
4. High strength, good water tolerance, no pulverization under the condition of boiling by 2 hours or soaking by 30 days, and the strength remain the same as before, even in the condition of sudden pressurizing or relief with 12MPa, and undergoing blow test 100 times
5. Large applicable scope, 10~100°C without obvious change of sulfur content
6. In the condition of no O2 or large COcontent conditions, the sulfur content won't alter

Desulfuration and Renewal Principles of Xianke Iron Oxide Desulfurizer:
Desulfuration Reaction: Fe2O3.H2O+3H2S=Fe2S3.H2O+3H2O
Renewal Reaction: 2Fe2S3.H2O+3O2=2Fe2O3.H2O+6S (strong exothermic reaction)

Note: The desulfuration renewal can be cyclic regeneration when there is Oor O2/H2S≥2.5 in the air, and the reaction formula combines into 2H2S+O2=H2O+2S with the iron oxide as the catalyst.

Application:
Xianke iron oxide desulfurizer can be used as raw materials or hydrothion removal in the fields of chemical fertilizer, chemical industry, petrochemical industry and coal chemical industry, as well as dry removal H2S in natural gas, water gas, semi-water gas, carbon gas, transformative gas, coke-oven gas, methane, CO2and sulfurous gas in city gas. It can be also applied to desulfurizer for organic sulfur.

Proposed Application Direction:
Content: H2S≤15mg/Nm3, space velocity: 1000~3000h-1
Temperature: 0~100°C
Pressure: normal pressure to 10MPa
Humidity: relative humidity 20~100%, water content in bed is strictly prohibited



Package and Storage:
40kg into a plastic  woven bag with PE inner. No mix-storage with other filter materials.
